Transformers - Yousef's Notes
Transformers

Transformers

Parallelized Neural Network using self-attention mechanism instead of recurrence to process sequential data.

  • Use
    • Natural Langage processing (NLP), speech recognition, machine translation, chatbots, large language models (e.g. GPT, BERT)
  • Data Flow
    • Uses multi-head self-attention to capture relationships among tokens in parallel.
  • Structure
    • Input Embedding → Multi-head self-attention layers → Feedforward layers → Output Layer.
  • Activation Function
    • ReLU in hidden layers.
    • Softmax for classification tasks.
  • Loss Function
  • Learning
    • Uses transformer-based attention mechanisms, trained using Adam optimizer and large datasets.
  • Pros
    • Highly scalable
    • Faster than RNNs and LSTMs, SOTA in NLP.
  • Cons
    • Massive datasets
    • Computationally expensive
    • Hard to interpret

#Architecture

  • Process features in parallel. E.g., sentence: processes words/n-grams in parallel, not sequentially.
  • Processing all the features at the same time, enables learning relational patterns among them.
  • Examples:
  • Learn contextual use of words: “The needle has a sharp point.” Vs “It is not polite to point at people.”
  • Learn references: “I went to France, after midterm, and there I ate the delicious food of that country”

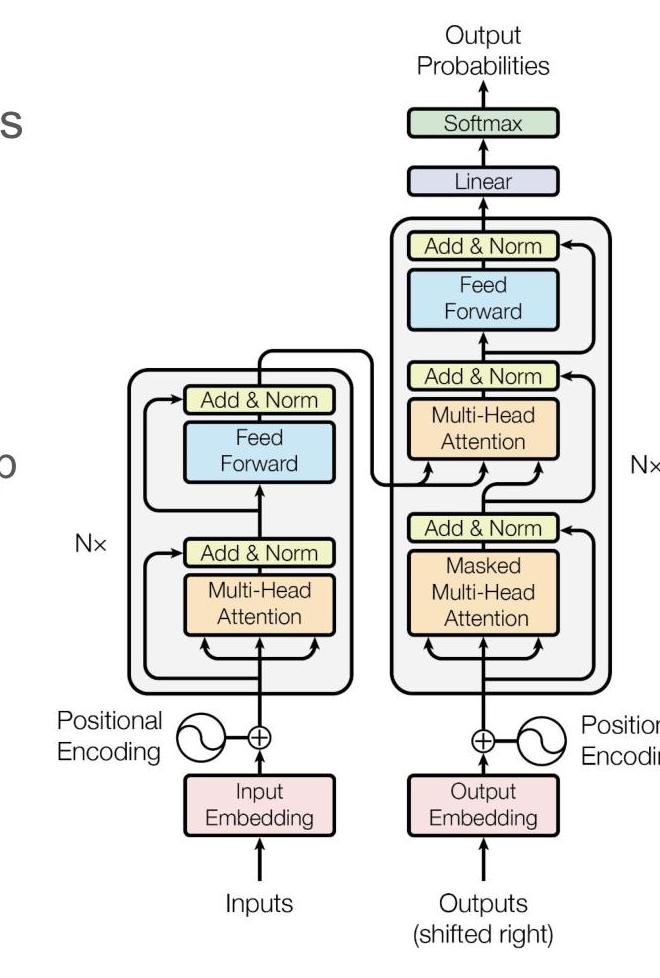

  • Architecture:
  • Encoder (left); decoder (right).
  • Self-attention computes relationships between words.
  • Stacked layers (Nx times) build deep representations.
  • Self-attention replaces recurrence.

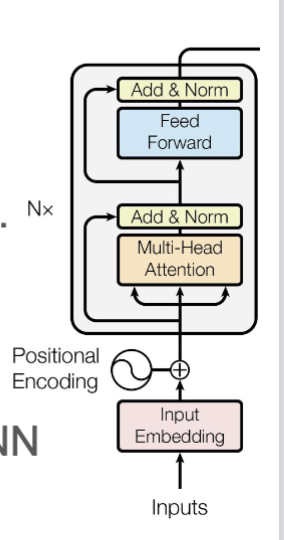

#Encoder

  • Left side: encoder processes the input sequence.
  • Right side: decoder generates the output sequence.
  • Encoder/decoder use multi-head self-attention + feedforward layers. N*
  • Nx indicates a number N of identical concurrent layers.
  • Input embedding: word embeddings contain semantic meaning but lack positional order.
  • Positional encoding: add order information to embeddings. Note: RNN used recurrence.

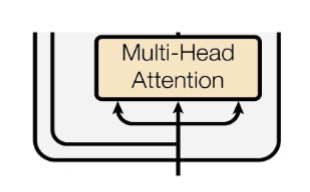

  • Multi-Head Self-Attention: each word attends to all other words in the sequence; one head per relation type
  • Add & Norm: residual connection (Add) helps gradient flow; Layer normalization (Norm) stabilizes training.
  • FFWN: concurrently applies transformations to words.

#Self-Attention

  • Self-Attention: key mechanism that allows Transformers to process input sequences without recurrence.

  • Instead of processing one word at a time (like RNNs),

    Self-Attention lets each word attend to all other words.

  • Each word is transformed into three vectors:

    • Query (Q): “What am I looking for?”
    • Key (K): “What do I have?”
    • Value (V): “What information do I pass forward?”
  • Each word compares itself to every other word in the sequence.

  • Words that are relevant to each other get higher attention scores.

  • The model weighs the words based on these scores before making a decision.

  • Input sequence:

    • E.g., “The cat sat on the mat”.
    • Tokenized and embedded into a vector $X$ (as seen for RNNs).
  • Each word in $X$ is multiplied by three weight matrices $\left(W_{Q}, W_{K^{\prime}}, W_{V}\right)$, creating three new matrices: $Q=X W_{Q}, K=X W_{K^{\prime}}, V=X W_{V}$

  • Compute attention scores:

    • Use the scaled dot-product attention $\quad$ Attention $=$ softmax $\left(\frac{Q K^{T}}{\sqrt{d_{k}}}\right) V$
    • $Q K^{T}$ : Computes the similarity between each query and each key.
    • $\sqrt{d_{k}}$ : Scaling factor to prevent large values.
    • Softmax: converts scores into probabilities.
    • Multiplying by V: weighs the words based on their importance.
  • Compute final attention output:

    • Words that are more relevant get a higher weight.
    • The attention mechanism highlights important words while downplaying irrelevant ones. E.g., given “cat”, “sat” will be more important than “mat”

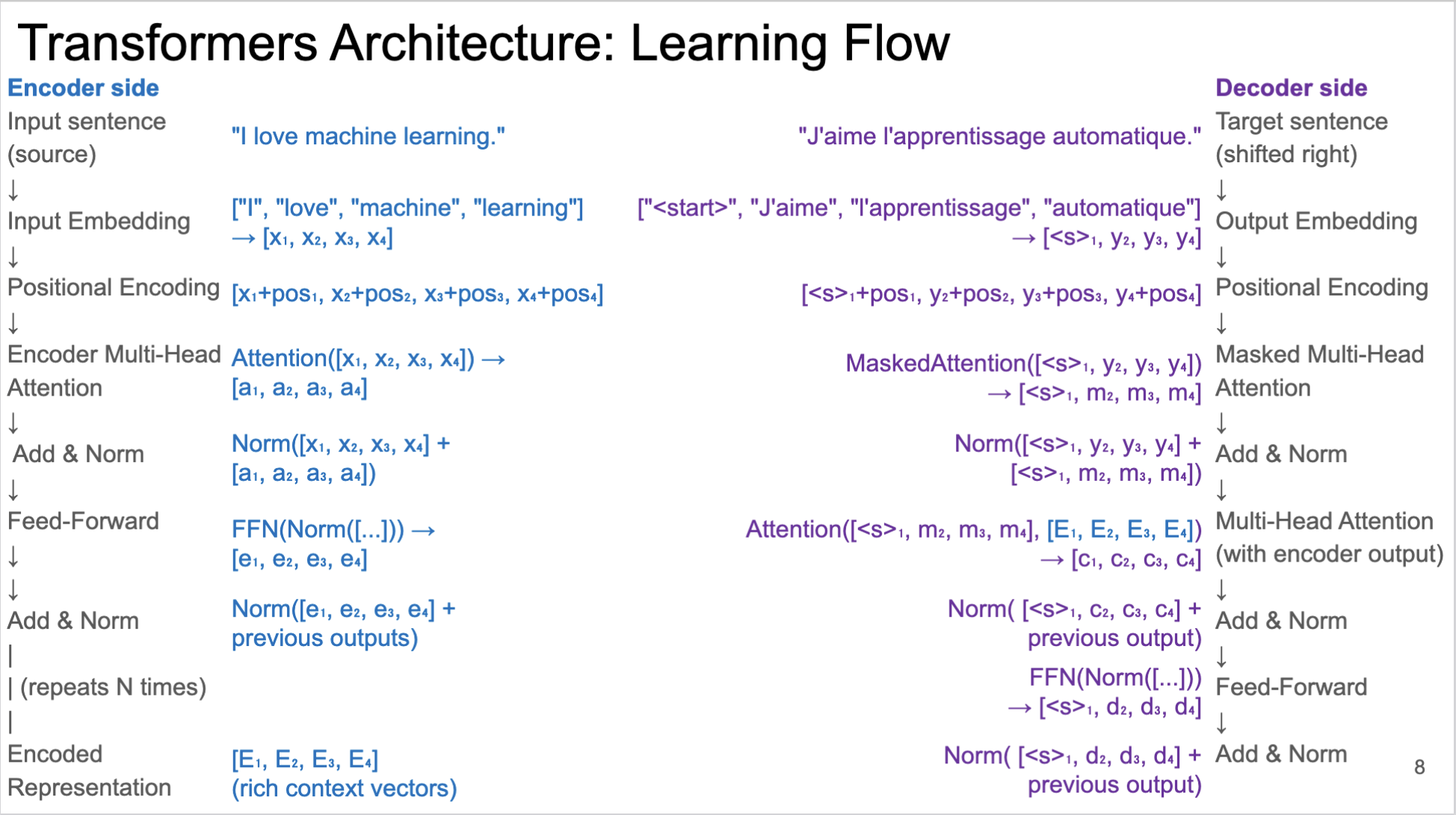

#Learning Flow

  • Encoder encodes the input sentence, i.e., the sentence to translate

  • Decoder decodes the input sentence using the target sentence (i.e., the actual translation) to train the neural networks.

  • In the training phase, both the encoder and decoder process the input sentence (encoder) and the target sentence (decoder) simultaneously.

  • Parallelism is offered by the multi-head attention (replacing the recursion in RNN)

  • Masking: the first word of the decoder is the control word . Without it the encoder would see the future, i.e., the word that it has to predict.

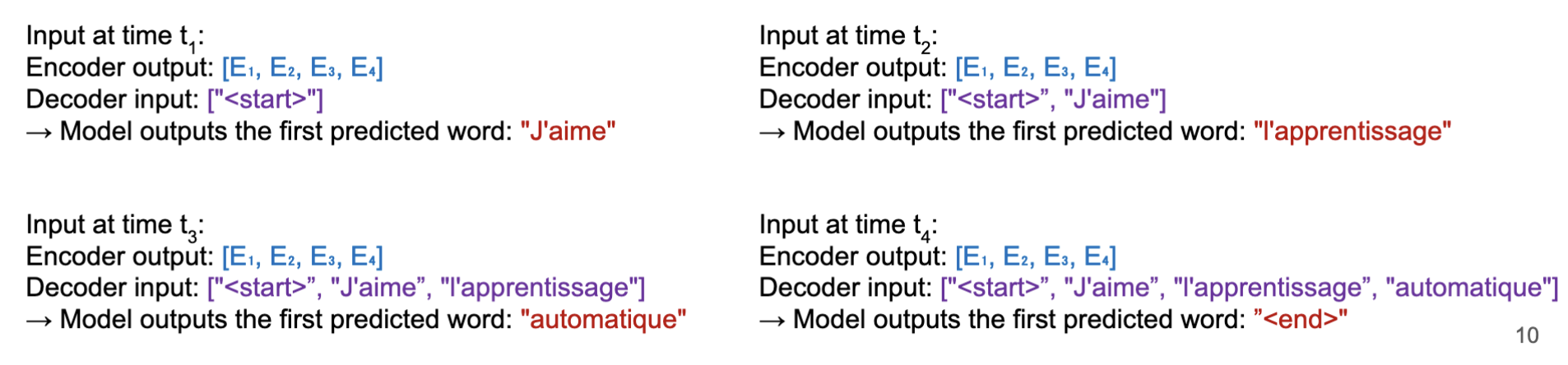

  • The encoder gets the sentence as input; the decoder predicts one word at a time.

  • At inference time, the encoder runs sequentially, and every step is based on previously predicted words and encoder context.

  • Within each decoding step, computation (self-attention, encoder-decoder attention, FFN) remains parallel.

  • However, sequential dependency across decoding steps prevents full parallelization across the entire output sequence.
