Recurrent Neural Networks

Recurrent Neural Networks

  • For sequential data, connections form a loop to keep memory of past inputs
  • Use: speech recognition, time-series forecasting, machine translation, chatbots.
  • Data flow: loops allow information to persist across different time steps, making it suitable for sequence learning.
  • Structure: Input layer → Recurrent hidden layers (with memory state) → Output.
  • Activation function: Tanh/ReLU in hidden layers, Softmax for sequence classification.
  • Loss function: Cross-entropy loss for classification, MSE for regression tasks.
  • Learning: Uses gradient descent and backpropagation through time (BPTT) to update weights.
  • Pros: Can handle sequential data, remembers previous inputs, good for time-dependent tasks.
  • Cons: Suffers from vanishing gradients, struggles with long-term dependencies, slow training.

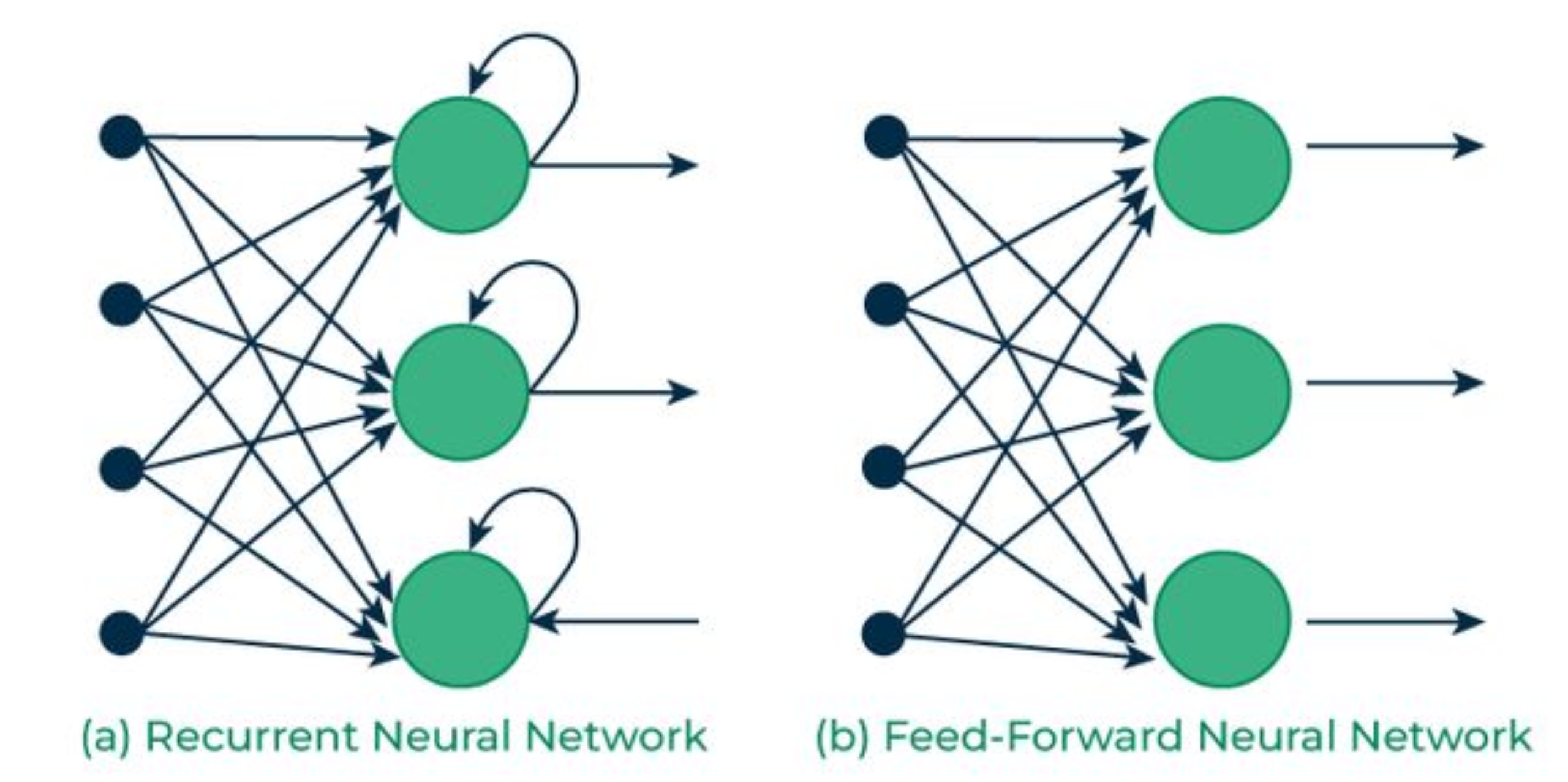

#Example Architecture

  • RNNs have loops to feed back information from previous steps into the network.
  • RNNs remember prior inputs, ideal for tasks where context is important

#Hyperparameters

  • Embedding dimensionality of words
  • Size of memory (dimensionality of memory vector)

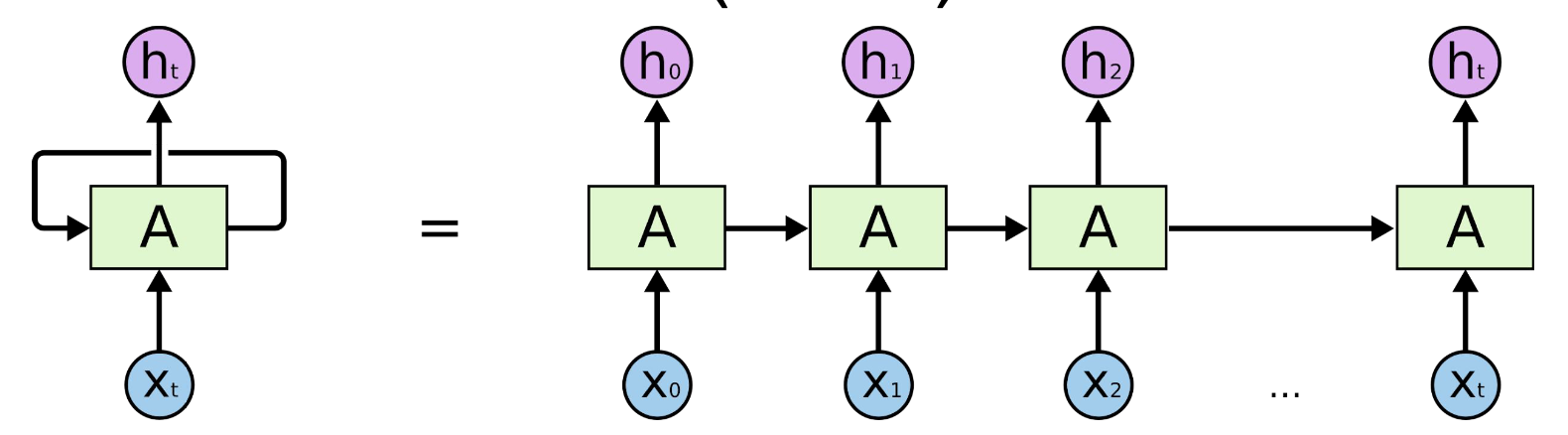

#RNNs Unrolled

  • Once unrolled, RNNs become chains of repeating units, often called “cells”.
  • RNNs take one input at a time and update an internal memory called hidden state.
$$ h_t = f(W_x X_t + W_h h_{t-1} + b) $$

  • $h_t$ = Hidden state at time step $t$ (memory)

  • $X_t$ = Input at time step $t$

  • $W_x$ = Weights for input $X_t$

  • $W_h$ = Weights for the hidden state (previous memory)

  • $b$ = bias

  • $f$ = Activation function (usually $\tanh$ or ReLU)

  • Each cell is a “mini-network” that processes sequential data step-by-step with a set of neurons that apply transformations over time.

  • tanh (hyperbolic tangent) is the activation function used after the sum product of current and past weights/inputs.

  • softmax is one of the activation functions used for the output layer.

  • Note: an RNN can produce an output (i.e. prediction) at each iteration and/or pass the hidden state to the next cycle without an output.

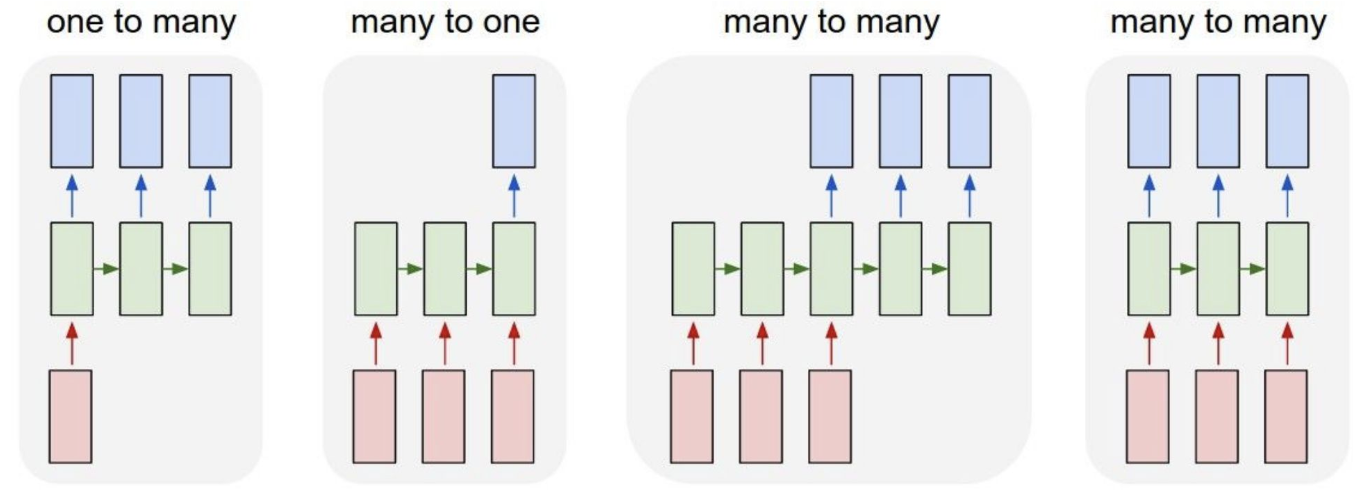

#RNN Patterns

  • Vector to Sequence (one to many)
    • e.g. image captioning, input an image and get the caption one word at a time.
  • Sequence to Vector (many to one)
    • e.g. spam classifier, reads in all email one word at a time and returns a spam/no-spam single token.
  • Encoder-Decoder (many to many)
    • e.g. translation, gets a sentence in and then gets a translated out.
  • Sequence to Sequence (many to many)
    • e.g. price forecasting, reads in a time series of stock volume/technical indicators and returns a price prediction for each input at time t.

#RNN Text Example

  • Dataset

    • “I love machine learning”
    • “Deep learning is very difficult”
    • “Learning models "

  • FNNs took the whole sentence as a single vector; RNNs process each word sequentially.

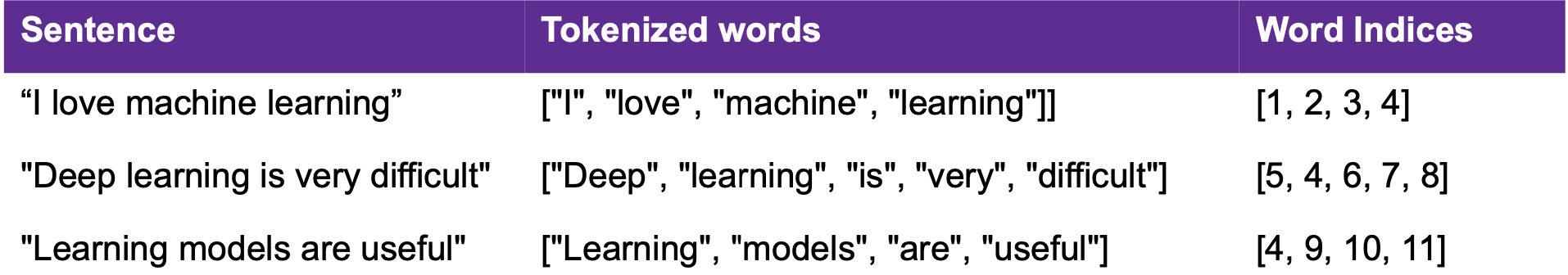

  • Instead of Bag of Words (which ignores order), we represent each sentence as a sequence of word indices, i.e. each sentence is a sequence of numbers.

  • Instead of using BoW, we use word embeddings:

    • Convert each word into a dense vector of real numbers.
    • Capture relationships between words, e.g. “love” and “like” are similar.

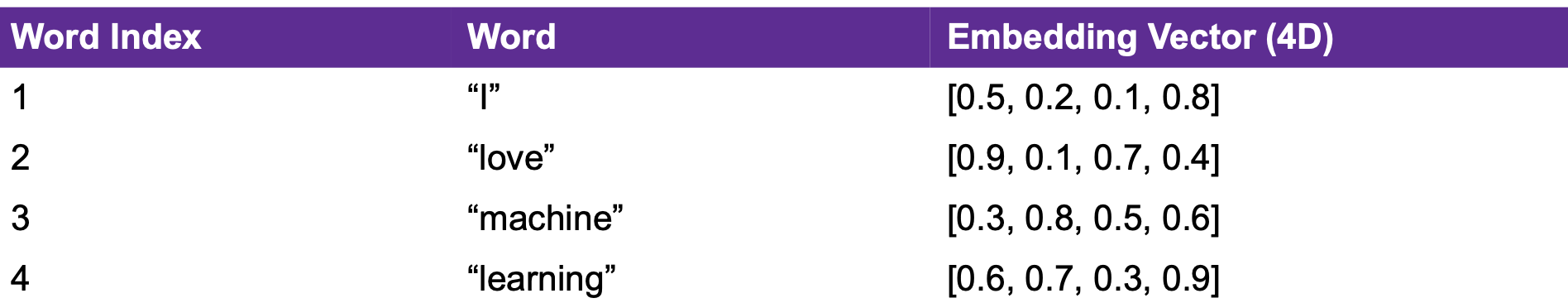

  • Each word index is mapped to a pre-trained or trainable embedding vector. This is done using an embedding layer in neural networks.

  • Converted the sentence to an embedding matrix, i.e. sequence of dense vectors:

    • $[0.5, 0.2, 0.1, 0.8], [0.9, 0.1, 0.7, 0.4], [0.3, 0.8, 0.5, 0.6], [0.6, 0.7, 0.3, 0.9]$

  • We pass each element of the sequence to the RNN, one element at each time $t$.

  • The RNN updates the hidden state $h$ at each time $t$, holding the entire sentence into the last hidden variable.

  • Execution processes of “I love machine learning”:

    • $t_1 \rightarrow [0.5, 0.2, 0.1, 0.8] \rightarrow h_1 = f(W_x X_1 + W_h h_0) \rightarrow$
    • $t_2 \rightarrow [0.9, 0.1, 0.7, 0.4] \rightarrow h_2 = f(W_x X_2 + W_h h_1) \rightarrow$
    • $t_3 \rightarrow [0.3, 0.8, 0.5, 0.6] \rightarrow h_3 = f(W_x X_3 + W_h h_2) \rightarrow$
    • $t_4 \rightarrow [0.6, 0.7, 0.3, 0.9] \rightarrow h_4 = f(W_x X_4 + W_h h_3).$ Note: the size of the hidden state h is a hyperparameter chosen based on the size of the input and the amount of “memory” we want to give to the RNNs.

  • Assume $h$ is a vector of size 8, each time step >0 compute a matrix like:

$$ h_2 = \tanh \left( \begin{bmatrix} w_{1,1} & w_{1,2} & w_{1,3} & w_{1,4} \\ w_{2,1} & w_{2,2} & w_{2,3} & w_{2,4} \\ \vdots & \vdots & \vdots & \vdots \\ w_{8,1} & w_{8,2} & w_{8,3} & w_{8,4} \\ \end{bmatrix} \cdot \begin{bmatrix} x_{2,1} \\ x_{2,2} \\ x_{2,3} \\ x_{2,4} \\ \end{bmatrix} + \begin{bmatrix} u_{1,1} & u_{1,2} & \cdots & u_{1,8} \\ u_{2,1} & u_{2,2} & \cdots & u_{2,8} \\ \vdots & \vdots & \ddots & \vdots \\ u_{8,1} & u_{8,2} & \cdots & u_{8,8} \\ \end{bmatrix} \cdot \begin{bmatrix} h_{1,1} \\ h_{1,2} \\ \vdots \\ h_{1,8} \\ \end{bmatrix} + \begin{bmatrix} b_1 \\ b_2 \\ \vdots \\ b_8 \\ \end{bmatrix} \right) $$

  • 1st Matrix ($W_X$): transforms the 2nd word from embedding space to hidden space.

  • 2nd Matrix ($W_H$): transforms the previous hidden state into the current hidden state.

  • $\tanh$ applies to the resulting 8D vector that stores memory from $h_0$ and $h_1$.

  • We take the final hidden state $h_4$ and pass it through a fully connected layer to predict sentiment:

    • $y = \text{Softmax}(W_o h_4 + b_o)$
    • $h_4$: final hidden state (memory of the sentence)
    • $W_o$, $b_o$: weight matrix of the output layer and bias vector of the output layer
    • Softmax converts outputs into probabilities for positive, neutral, or negative

  • We need a fully connected output layer because the hidden state $h_4$ is not in the correct format for classification.

  • $W_o$ and $b_o$ map $h_4$ to a probability distribution over possible sentiment classes.

$$ \begin{bmatrix} y_{\text{Positive}} \\ y_{\text{Neutral}} \\ y_{\text{Negative}} \end{bmatrix} = \text{Softmax} \left( \begin{bmatrix} w_{o,11} & w_{o,12} & \cdots & w_{o,1h} \\ w_{o,21} & w_{o,22} & \cdots & w_{o,2h} \\ w_{o,31} & w_{o,32} & \cdots & w_{o,3h} \end{bmatrix} \cdot \begin{bmatrix} h_{T,1} \\ h_{T,2} \\ \vdots \\ h_{T,h} \end{bmatrix} + \begin{bmatrix} b_{o,1} \\ b_{o,2} \\ b_{o,3} \end{bmatrix} \right) $$

  • The output of that matrix is

    • Positive: 89.1%
    • Neutral: 10.7%
    • Negative: 0.2%

  • This concludes the forward pass of the RNN.

  • During training, we implement a backpropagation through time (BPTT)

    • Compute the loss, comparing the resulting three classes probabilities to the true classes.
    • Compute the gradients backward through time.
    • Update weights $W_o$, $W_X$, $W_h$ by applying gradient descent.

#Problems with RNN

  • Vanishing and exploding gradients that make long-term dependencies hard to learn.

  • Slow training due to their sequential architecture, e.g. 100 words = 100 steps.

  • Short-term memory due to finite size of hidden states.

  • Bias towards recent inputs due to gradients decay as they backpropagate.

  • RNNs update weights with BPTT, compute the gradient of the loss with respect to parameters using the chain rule.

$$ \frac{\partial L}{\partial W_h} = \sum_{t} \frac{\partial L}{\partial h_t} \cdot \frac{\partial h_t}{\partial h_{t-1}} \cdots \frac{\partial h_1}{\partial W_h} $$

  • Repeatedly multiplying gradients by the weight matrix.

  • Eigenvalues < 1: weights shrink to near-zero (vanish);

  • Eigenvalues > 1: weights grow uncontrollably (explode)

  • Vanishing gradients:

  • Earlier time steps don’t impact learning, i.e., long-term dependencies are forgotten.

  • E.g., “not” in “I do not like this movie” could be forgotten.

  • Exploding gradients:

  • Weights become too large, getting NaN errors that stop the model from converging.

  • Loss fluctuates widely, and the model might memorize noise instead of patterns.
