Handling Multiple Inputs and Outputs

Machine learning engineers often work with multimodal data. E.g., input: image and a text; output: whether the text describes the given image.

Difficult to work with multimodal data.
Vectorize each input with the corresponding feature engineering method.
Concatenate two feature vectors to form one wider feature vector.
E.g., image features $=\left[i^{(1)}, i^{(2)}, i^{(3)}\right]$; text features $=\left[t^{(1)}, t^{(2)}, t^{(3)}, t^{(4)}\right]$; concatenated feature vector $=\left[i^{(1)}, i^{(2)}, i^{(3)}, t^{(1)}, t^{(2)}, t^{(3)}, t^{(4)}\right]$.

We can build two subnetworks, one for each input type.
CNN subnetwork reads the image, while an RNN subnetwork reads the text.
The last subnetwork layer is an image (CNN) and a text (RNN) embedding.
Concatenate the two embeddings and add a classification layer (softmax or logistic sigmoid) on top of the concatenated embeddings.
Neural network libraries provide simple-to-use tools that allow concatenating or averaging layers from several subnetworks.
We want to predict multiple outputs for one input.
Use a multi-label/multi-class classification problem:
Multi-label: labels are monomodal and independent, e.g., [cat, dog, rabbit] or the tags in social media posts [AI, Deep Learning, ML].
Multi-class: labels are monomodal and interdependent, e.g., [red, green, circle, line]. We enumerate and label all the combinations of the labels, e.g., [green circle, red line, etc.].
Warning: multi-class works grow exponentially with # of labels.
Use a subnetwork that works as an encoder:
Outputs are multimodal and their combinations cannot be effectively enumerated
E.g., detecting an object on an image, returning its coordinates + description tag.
We read the input image using N convolution layers.
The encoder’s last layer is the image embedding.
We add two subnetworks on top of the embedding layer, each taking the embedding vector as input and predicting the coordinates of the object, and the tag

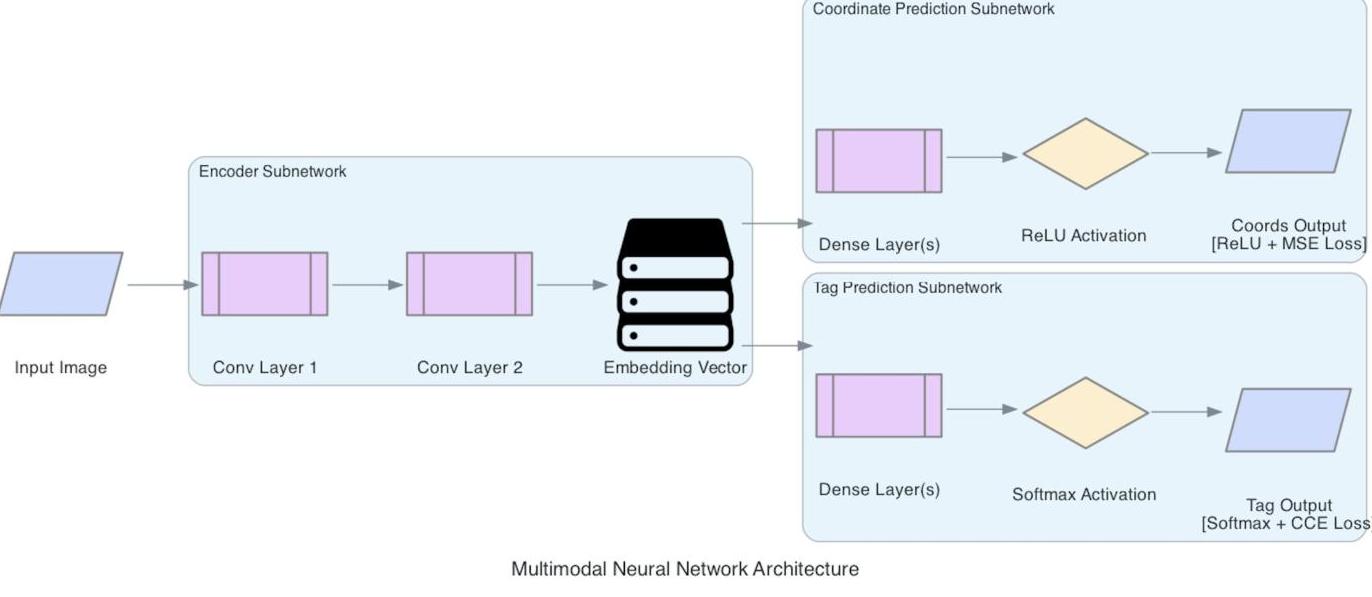

Multimodal Neural Network architecture.

First subnetwork (coordinates):

Takes the embedding vector as input.
Has a ReLU last layer to predict coordinates as positive real numbers.
Use the mean squared error cost C1.
Alternatively the coordinates can be in the range [0,1], last layer has four logistic sigmoid outputs + average four binary cross-entropy cost functions for Second subnetwork (tags):
Takes the same embedding vector as input.
Predicts the probabilities for each tag.
Has a Softmax last layer for multiclass classification.
Uses the averaged negative log-likelihood cost C2 (also called cross-entropy cost).,
Might solve a multi-label classification problem (in which case it would also have several sigmoid outputs and average several binary cross entropy costs, one per tag).
We want accurate predictions of both the coordinates and the tags.
It is impossible to optimize two cost functions at once. By trying to improve one, we risk hurting the other one, and vice-versa.
Add another hyperparameter $\gamma$, in the range $(0,1)$, and define the combined cost function as $\gamma \times \mathrm{C} 1+(1-\gamma) \times \mathrm{C} 2$.
Tune the value for $\gamma$ on the validation data, just like any other hyperparameter.
