Finding pi Using Monte Carlo Simulation

We will carry out the experiment in 5 steps:

Generate 2 random numbers between 0 and 1 in total 100 times (x and y).
Calculate x2 + y2 (This is the point in the space).

If the value is less than 1, the case will be inside the circle
If the value is greater than 1, the case will be outside the circle.

Calculate the proportion of points inside the circle and multiply it by four to approximate the π value.
Repeat the experiment a thousand times, to get different approximations to π.
Calculate the average of the previous 1000 experiments to give a final value estimate.

#Step 1. Generating two random numbers between -1 and 1, 100 times

np.random.seed(2023)
nPoints = 100
x = np.random.uniform(0,1,nPoints)
y = np.random.uniform(0,1,nPoints)
print(x[1:10])

#Returns
[0.322 0.89 0.588 0.127 0.141 0.468 0.022 0.727 0.524]

print(y[1:10])

#Returns
[0.878 0.519 0.68 0.436 0.972 0.365 0.623 0.258 0.681]

#Step 2. Calculate the Circumference Equation

If the value is less than 1, the case will be inside the circle.
If the value is greater than 1, the case will be outside the circle.

def circum(x,y):
result = []
for i in range(len(x)):
point = x[i]**2 + y[i]**2
if(point<=1):
result.append(True)
else:
result.append(False)
return(result)

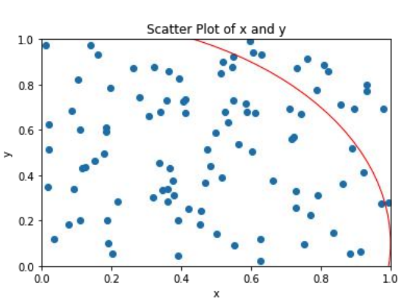

A value of the vector result is TRUE if x[i]^2 + y[i]^2 <= 1, that is if the associated point is within the circle. We can see that out of the first six simulated points, only one is outside the circle.

sim_points = circum(x,y)
print(sim_points[1:10])

# Returns
[True, False, True, True, True, True, True, True, True]

#Step 3. Calculate the proportion of points inside the circle and multiply it by 4 to approximate the pi value.

So using our 100 simulated points, we came up with an approximation of 3.16 for the value of π.

Of course this number depends on the random numbers that were generated. If we were to repeat it (without using the seed), we would get a different approximation.

pi_val = 4*sum(sim_points)/nPoints
print(pi_val)

# Returns
3.16

#Step 4. Repeat the experiment a thousand times, to get different approximations

Now that we know how to approximate the π number we can replicate the experiment N times to perform a monte carlo simulation and obtain a better result. We will use a single function for doing this:

def pi_val_func(nPoint=100):
x = np.random.uniform(0,1,nPoints)
y = np.random.uniform(0,1,nPoints)
values = []
for i in range(len(x)):
point = x[i]**2 + y[i]**2
if(point<=1):
values.append(True)
else:
values.append(False)
pi_val = 4*sum(values)/nPoints
return(pi_val)

np.random.seed(2023)
pi_val_func() #Returns 3.16

So we can see that the function works since it gives us the same output as the code above. Now we can replicate this experiment any number of times (e.g., 1000 times) to obtain different measures of the π number. In order to do that we need to define a “replicate” function:

def replicate_pi(n_replicas = 1000, nPoints = 100):
replicas = []
for i in range(n_replicas):
replicas.append(pi_val_func(nPoints))
return(np.array(replicas))

Therefore, the following code replicates the experiment

np.random.seed(2023)
pi_numbers = replicate_pi()
print(pi_numbers[1:10])

# Returns
[3.36 2.64 3.04 3.4 3.04 3.16 3.2 3.08 3.24]

We can see that the first entry of the vector pi_numbers is indeed pi_numbers[0] which is the same value we obtained running the function ourselves (in both cases we fixed the same seed).

#Step 5. Calculate the average of the previous 1000 experiments to give a final value estimate

pi_numbers.mean() # Returns 3.1428

The average gives us a good approximation of π. A boxplot can give us a visualization of the results.

plt.boxplot(pi_numbers)
plt.xlabel("Replicas")
plt.ylabel("Pi number")
plt.title("Pi number MC Simulation")
plt.show()

The boxplot tells us two important things:

If we were to take the median of the 1,000 approximations of π as the value of π, we would get a value very close to the actual value (see the horizontal line inside the box).
If we were to choose a value for π based on a single simulation, then we could choose values between 2.6 and 3.6.

#Conclusions

One thing you might wonder now is the following. Why did we replicate the experiment 1000 times and each time took only 100 points. Could have we not taken a much larger number of points only once (for example 1000×100)? On one hand that would have clearly given us a good approximation, using the same total number of simulated points.

However this approach does not give us any information about uncertainty or about how good our approximation is. We have just one single value.

On the other hand, using replication we have 1000 possible approximations of π and we can construct confidence intervals of plausible values.

For instance, we would believe that the true value π is with 95% probability in the interval which includes 95% of the central approximations of π.

#Additional step: extending our knowledge

We can store the results of the experiment increasing the number of points and replicas to plot the optimization function of the π number estimation.

def optim_func_pi(max_nPoints, max_Replicas, n_repetitions):
	nPoints_sequence = np.linspace(100,max_nPoints,n_repetitions).round(0)
	replicas_sequence = np.linspace(1000,max_Replicas,n_repetitions).round(0)
	pi_averages = []
	for i in range(n_repetitions):
		print("Starting the estimation ", i, " out of ", n_repetitions)
		pi_vector = replicate_pi(int(nPoints_sequence[i]), int(replicas_sequence[i]))
		pi_averages.append(pi_vector.mean())
	return(pi_averages)

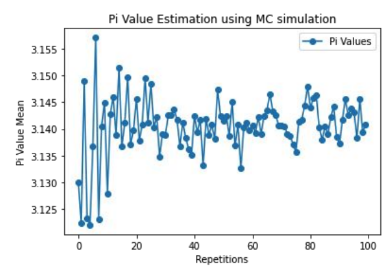

Here we have the resulting plot. We see that the algorithm is estimating better as we increase the simulated points and the replicas of the experiment.
