Scheduling

The process of allocating the CPU to different Processes. The primary goal of scheduling is to optimize the use of system resources, ensure fairness, efficiency, and provide a responsive user experience.

Criteria:

• Response time
  • Time the process takes to return any data
• Throughput
  • The number of processes that complete their execution per unit time. It measures the rate at which processes are completed by the system.
• Turnaround time
  • Time the process takes to finish
• Waiting time
  •  The time a process spends waiting in the ready queue for the CPU to become available. It does not include the time spent waiting for I/O operations.

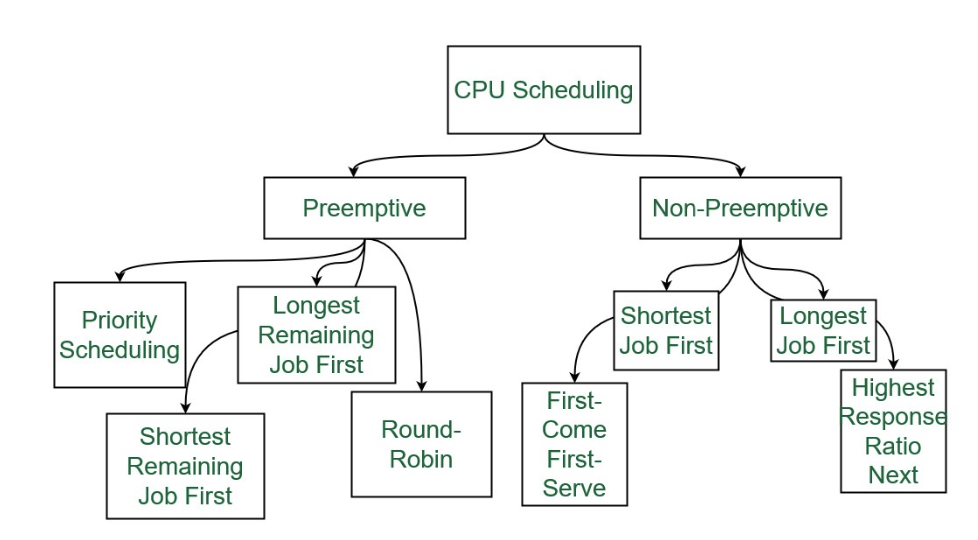

#Types of Scheduling

There are two primary types of scheduling: Cooperative(non-preemptive) and Preemptive.

#Cooperative Scheduling

• In cooperative scheduling, the operating system relies on the processes to voluntarily yield control of the CPU back to the operating system.
• The process will continue to execute until it completes its task or yields control back to the operating system.
• This approach is also known as non-preemptive scheduling.
• Cooperative scheduling is simple to implement but can lead to poor system performance if a process does not yield control in a timely manner.

#Preemptive Scheduling

• In preemptive scheduling, the operating system forcibly takes control of the CPU from a Process after a certain time period, known as a time slice or time quantum.
• The operating system will then allocate the CPU to another process, allowing multiple processes to execute concurrently.
• Preemptive scheduling provides better system responsiveness and fairness, as no single process can monopolize the CPU.
• This approach is more complex to implement than cooperative scheduling but provides better overall system performance.



#Scheduling Algorithms

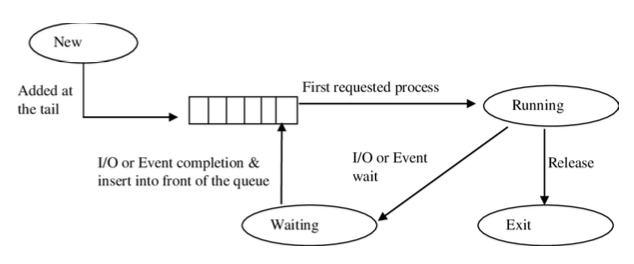

#First-Come-First-Served (FIFO)

The process that arrives first in the ready queue is executed first. Simple, fair. No starvation

• Convoy effect (short process blocked by long process)
• Non-optimal performance
• No priority considered



#Last-In-First-Out Scheduling (LIFO)

Stack-like behavior. Simple and responsive.

Disadvantages

• Starvation
• Inefficient for most practical applications
• Poor average waiting time.

#Shortest Job First (SJF)

The process with the shortest execution time is executed first.

#Priority Scheduling

Processes are assigned a priority, and the process with the highest priority is executed first.

#Round Robin (RR)

Each process is allocated a fixed time slice, and the CPU is allocated to each process in a circular fashion.

Fair, responsive, and simple.

Disadvantages

• Context switching overhead
  • You have to copy all registers, come back, do it again.
• Time quantum sensitivity
• Average performance Critical: Selecting optimal Time quantum to switch the context Disadvantages
• Starvation
• Inefficient

#Multilevel Queue Scheduling

Multiple queues and each queue has a different priority. Each queue will have a different algorithm for scheduling.

Linux uses Completely Fair Scheduler.

#Example Use Cases

• Cooperative scheduling is often used in embedded systems or real-time systems where predictability and simplicity are crucial.
• Preemptive scheduling is commonly used in general-purpose operating systems, such as Windows, Linux, or macOS, where responsiveness and fairness are essential.

#Mathematical Representation

The scheduling problem can be represented mathematically using the following equation:
